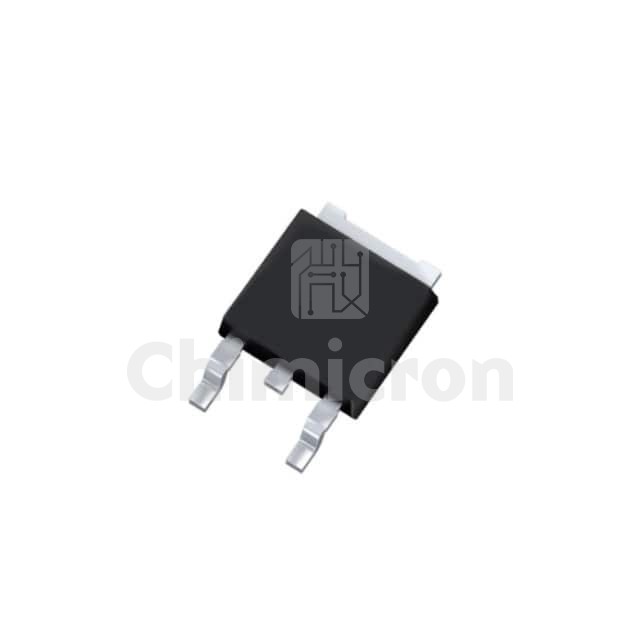

IPD85P04P407ATMA2
IPD85P04P407ATMA2

Manufacturer: IR (Infineon Technologies)

Description: MOSFET P-CH 40V 85A TO252-3
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: Automotive, AEC-Q101, OptiMOS®-P2
In Stock:3000
Get Instant Quote
orSend BOM
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the IPD85P04P407ATMA2 IR (Infineon Technologies) at chimicron.com. We have 3000 pieces of IPD85P04P407ATMA2 in stock available now. Submit an inquiry for IPD85P04P407ATMA2 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesAutomotive, AEC-Q101, OptiMOS®-P2
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)40 V
Current - Continuous Drain (Id) @ 25°C85A (Tc)
Drive Voltage (Max Rds On, Min Rds On)-
Rds On (Max) @ Id, Vgs7.3mOhm @ 85A, 10V
Vgs(th) (Max) @ Id4V @ 150µA
Gate Charge (Qg) (Max) @ Vgs89 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds6085 pF @ 25 V
FET Feature-
Power Dissipation (Max)88W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePG-TO252-3-313
Package / CaseTO-252-3, DPak (2 Leads + Tab), SC-63
