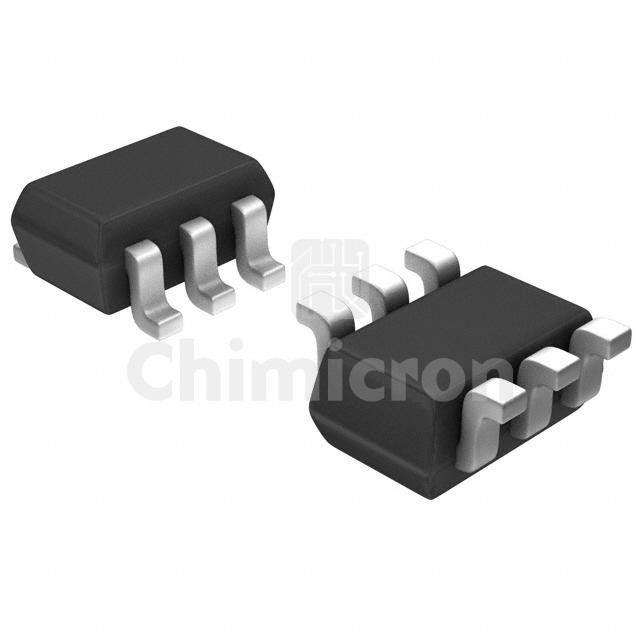

BSV236SPH6327XTSA1
Manufacturer: IR (Infineon Technologies)
Description: MOSFET P-CH 20V 1.5A SOT363-6
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: OptiMOS™
In Stock:555100
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the BSV236SPH6327XTSA1 IR (Infineon Technologies) at chimicron.com. We have 555100 pieces of BSV236SPH6327XTSA1 in stock available now. Submit an inquiry for BSV236SPH6327XTSA1 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesOptiMOS™
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C1.5A (Ta)
Drive Voltage (Max Rds On, Min Rds On)2.5V, 4.5V
Rds On (Max) @ Id, Vgs175mOhm @ 1.5A, 4.5V
Vgs(th) (Max) @ Id1.2V @ 8µA
Gate Charge (Qg) (Max) @ Vgs5.7 nC @ 4.5 V
Vgs (Max)±12V
Input Capacitance (Ciss) (Max) @ Vds228 pF @ 15 V
FET Feature-
Power Dissipation (Max)560mW (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePG-SOT363-6
Package / Case6-VSSOP, SC-88, SOT-363
