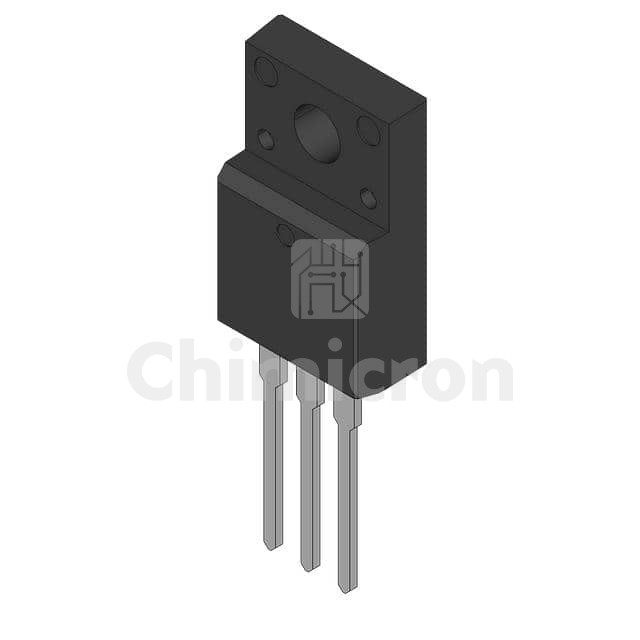

AUIRF540Z
AUIRF540Z

Manufacturer: IR (Infineon Technologies)

Description: MOSFET N-CH 100V 36A TO220AB
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: HEXFET®
In Stock:5000
Get Instant Quote
orSend BOM
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the AUIRF540Z IR (Infineon Technologies) at chimicron.com. We have 5000 pieces of AUIRF540Z in stock available now. Submit an inquiry for AUIRF540Z or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesHEXFET®
PackageTube
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)100 V
Current - Continuous Drain (Id) @ 25°C36A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs26.5mOhm @ 22A, 10V
Vgs(th) (Max) @ Id4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs63 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds1770 pF @ 25 V
FET Feature-
Power Dissipation (Max)92W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-220AB
Package / CaseTO-220-3
