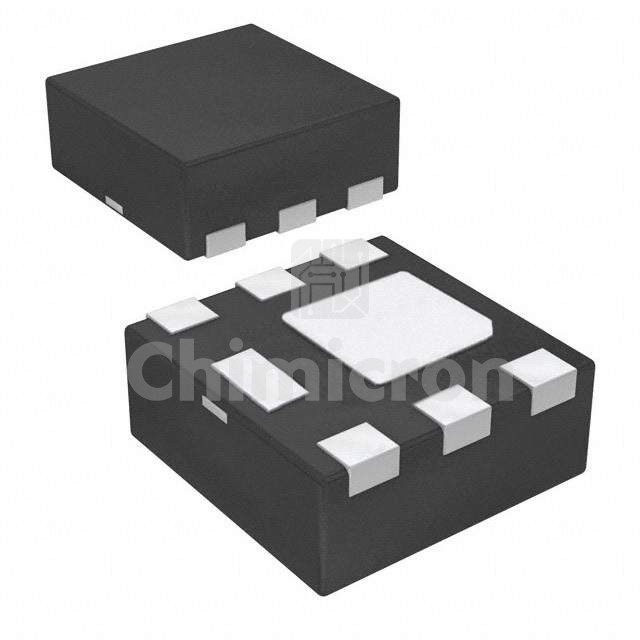

FDMA420NZ
Manufacturer: Sanyo Semiconductor/ON Semiconductor
Description: MOSFET N-CH 20V 5.7A 6MICROFET
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: PowerTrench®
In Stock:364463
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the FDMA420NZ Sanyo Semiconductor/ON Semiconductor at chimicron.com. We have 364463 pieces of FDMA420NZ in stock available now. Submit an inquiry for FDMA420NZ or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesPowerTrench®
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C5.7A (Ta)
Drive Voltage (Max Rds On, Min Rds On)2.5V, 4.5V
Rds On (Max) @ Id, Vgs30mOhm @ 5.7A, 4.5V
Vgs(th) (Max) @ Id1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs12 nC @ 4.5 V
Vgs (Max)±12V
Input Capacitance (Ciss) (Max) @ Vds935 pF @ 10 V
FET Feature-
Power Dissipation (Max)2.4W (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package6-MicroFET (2x2)
Package / Case6-WDFN Exposed Pad
