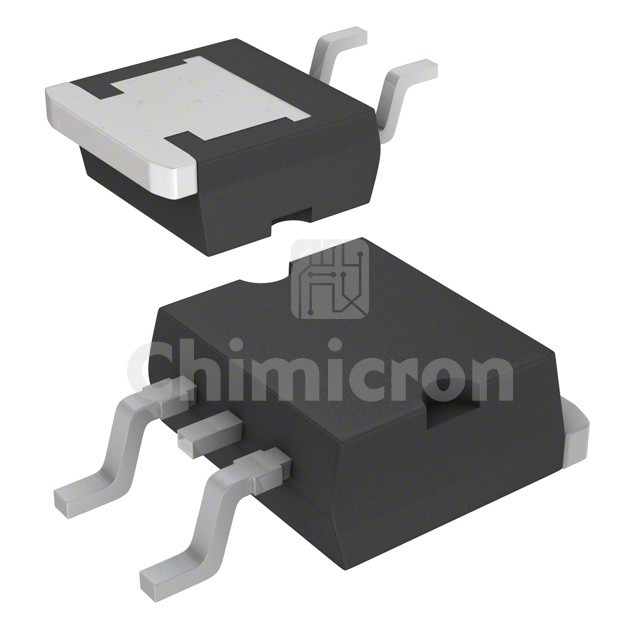

STB45NF06T4
STB45NF06T4

Manufacturer: STMicroelectronics

Description: MOSFET N-CH 60V 38A D2PAK
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: STripFET™ II
In Stock:2000
Get Instant Quote
orSend BOM
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the STB45NF06T4 STMicroelectronics at chimicron.com. We have 2000 pieces of STB45NF06T4 in stock available now. Submit an inquiry for STB45NF06T4 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesSTripFET™ II
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)60 V
Current - Continuous Drain (Id) @ 25°C38A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs28mOhm @ 19A, 10V
Vgs(th) (Max) @ Id4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs58 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds1730 pF @ 25 V
FET Feature-
Power Dissipation (Max)80W (Tc)
Operating Temperature175°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageD2PAK
Package / CaseTO-263-4, D²Pak (3 Leads + Tab), TO-263AA
