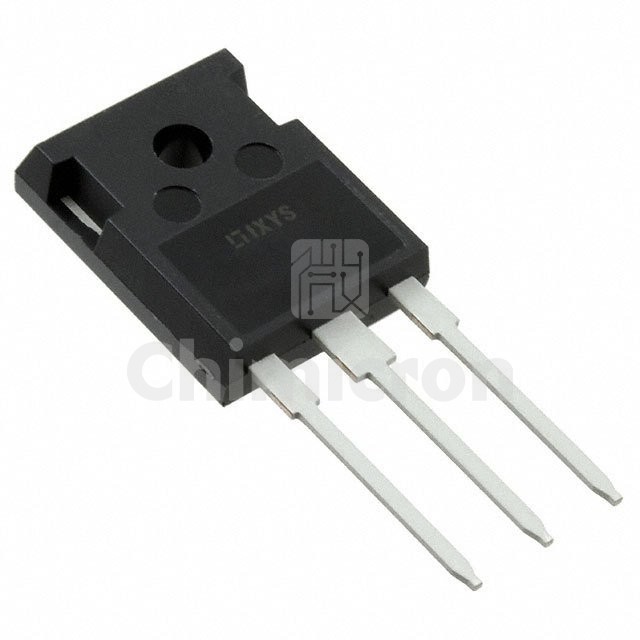

IXFH20N80P
Manufacturer: Wickmann / Littelfuse
Description: MOSFET N-CH 800V 20A TO247AD
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: HiPerFET™, PolarHT™
In Stock:2500
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the IXFH20N80P Wickmann / Littelfuse at chimicron.com. We have 2500 pieces of IXFH20N80P in stock available now. Submit an inquiry for IXFH20N80P or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesHiPerFET™, PolarHT™
PackageTube
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)800 V
Current - Continuous Drain (Id) @ 25°C20A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs520mOhm @ 10A, 10V
Vgs(th) (Max) @ Id5V @ 4mA
Gate Charge (Qg) (Max) @ Vgs86 nC @ 10 V
Vgs (Max)±30V
Input Capacitance (Ciss) (Max) @ Vds4685 pF @ 25 V
FET Feature-
Power Dissipation (Max)500W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-247AD (IXFH)
Package / CaseTO-247-3
