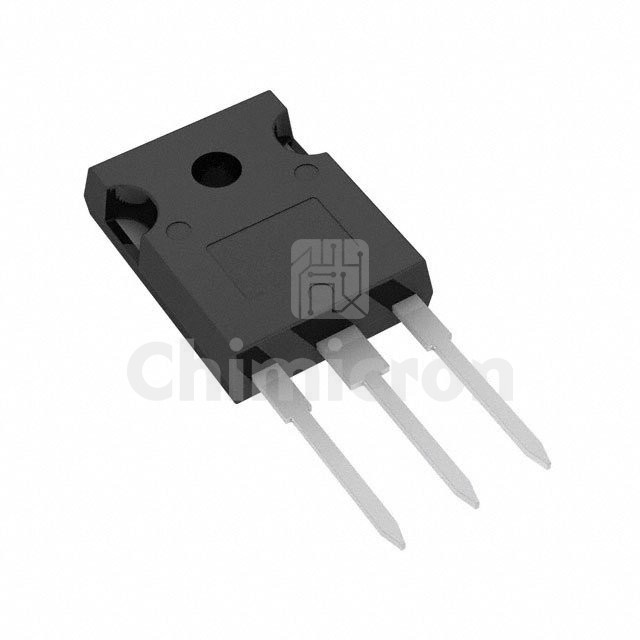

SCT3120ALGC11
Manufacturer: ROHM Semiconductor
Description: SICFET N-CH 650V 21A TO247N
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: -
In Stock:1500000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the SCT3120ALGC11 ROHM Semiconductor at chimicron.com. We have 1500000 pieces of SCT3120ALGC11 in stock available now. Submit an inquiry for SCT3120ALGC11 or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTube
Part StatusActive
FET TypeN-Channel
TechnologySiCFET (Silicon Carbide)
Drain to Source Voltage (Vdss)650 V
Current - Continuous Drain (Id) @ 25°C21A (Tc)
Drive Voltage (Max Rds On, Min Rds On)18V
Rds On (Max) @ Id, Vgs156mOhm @ 6.7A, 18V
Vgs(th) (Max) @ Id5.6V @ 3.33mA
Gate Charge (Qg) (Max) @ Vgs38 nC @ 18 V
Vgs (Max)+22V, -4V
Input Capacitance (Ciss) (Max) @ Vds460 pF @ 500 V
FET Feature-
Power Dissipation (Max)103W (Tc)
Operating Temperature175°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-247N
Package / CaseTO-247-3
