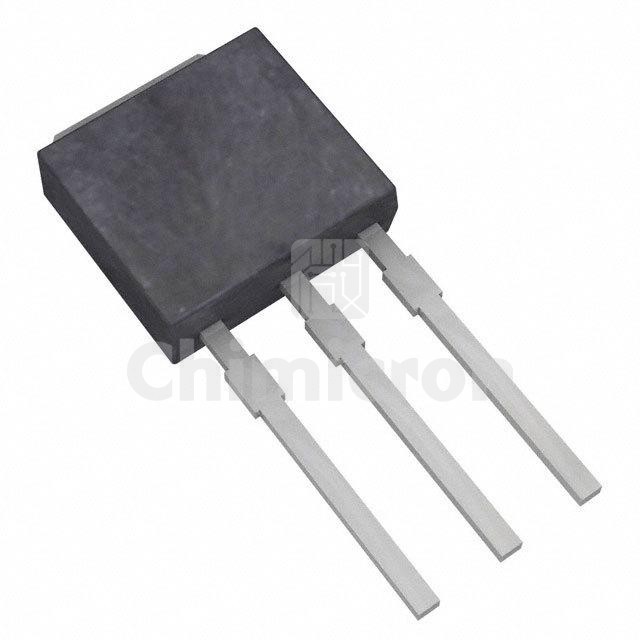

IRLU120NPBF
Manufacturer: IR (Infineon Technologies)
Description: MOSFET N-CH 100V 10A IPAK
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: HEXFET®
In Stock:270000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the IRLU120NPBF IR (Infineon Technologies) at chimicron.com. We have 270000 pieces of IRLU120NPBF in stock available now. Submit an inquiry for IRLU120NPBF or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesHEXFET®
PackageTube
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)100 V
Current - Continuous Drain (Id) @ 25°C10A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4V, 10V
Rds On (Max) @ Id, Vgs185mOhm @ 6A, 10V
Vgs(th) (Max) @ Id2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs20 nC @ 5 V
Vgs (Max)±16V
Input Capacitance (Ciss) (Max) @ Vds440 pF @ 25 V
FET Feature-
Power Dissipation (Max)48W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageIPAK (TO-251)
Package / CaseTO-251-3 Short Leads, IPak, TO-251AA
