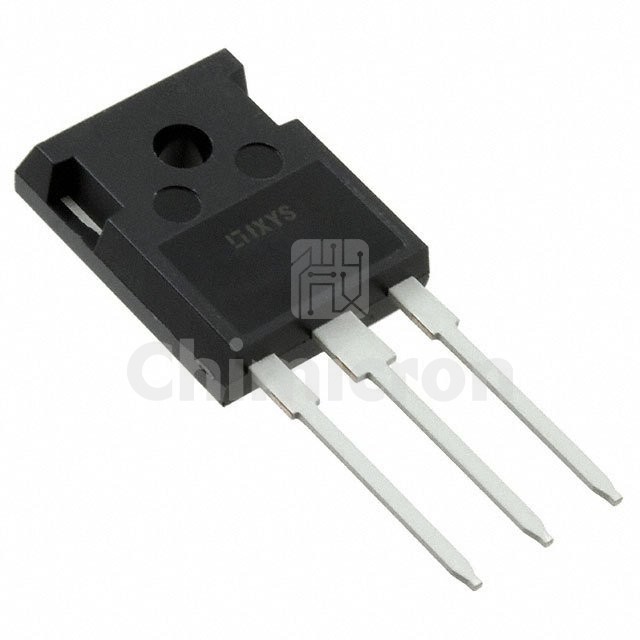

IXFH36N50P
Manufacturer: Wickmann / Littelfuse
Description: MOSFET N-CH 500V 36A TO247AD
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: HiPerFET™, PolarP2™
In Stock:9000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the IXFH36N50P Wickmann / Littelfuse at chimicron.com. We have 9000 pieces of IXFH36N50P in stock available now. Submit an inquiry for IXFH36N50P or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesHiPerFET™, PolarP2™
PackageTube
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)500 V
Current - Continuous Drain (Id) @ 25°C36A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs170mOhm @ 500mA, 10V
Vgs(th) (Max) @ Id5V @ 4mA
Gate Charge (Qg) (Max) @ Vgs93 nC @ 10 V
Vgs (Max)±30V
Input Capacitance (Ciss) (Max) @ Vds5500 pF @ 25 V
FET Feature-
Power Dissipation (Max)540W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-247AD (IXFH)
Package / CaseTO-247-3
