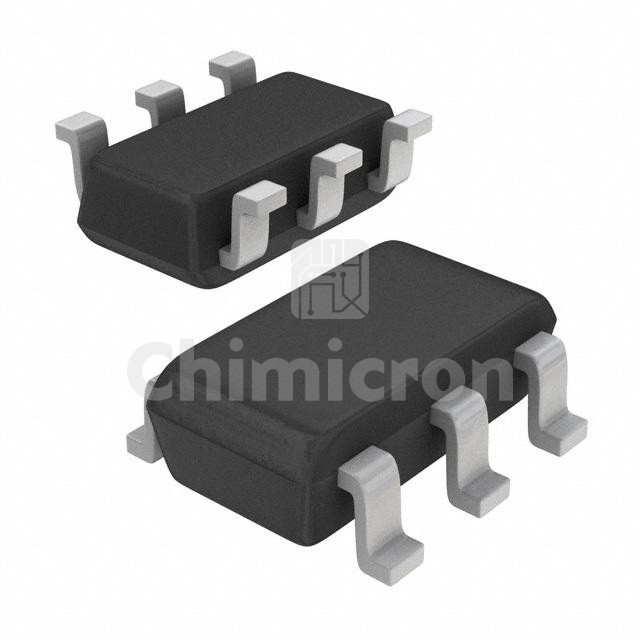

ZXM62P02E6TA
Manufacturer: Zetex Semiconductors (Diodes Inc.)
Description: MOSFET P-CH 20V 2.3A SOT23-6
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: -
In Stock:10000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the ZXM62P02E6TA Zetex Semiconductors (Diodes Inc.) at chimicron.com. We have 10000 pieces of ZXM62P02E6TA in stock available now. Submit an inquiry for ZXM62P02E6TA or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C2.3A (Ta)
Drive Voltage (Max Rds On, Min Rds On)2.7V, 4.5V
Rds On (Max) @ Id, Vgs200mOhm @ 1.6A, 4.5V
Vgs(th) (Max) @ Id700mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs5.8 nC @ 4.5 V
Vgs (Max)±12V
Input Capacitance (Ciss) (Max) @ Vds320 pF @ 15 V
FET Feature-
Power Dissipation (Max)1.1W (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageSOT-23-6
Package / CaseSOT-23-6
