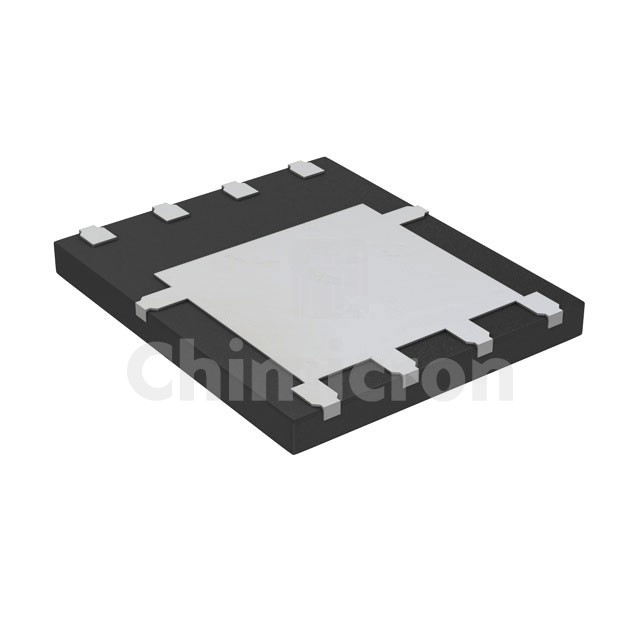

SIDR390DP-T1-GE3
Manufacturer: Vishay / Siliconix
Description: MOSFET N-CH 30V 69.9A/100A PPAK
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: TrenchFET® Gen IV
In Stock:500000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the SIDR390DP-T1-GE3 Vishay / Siliconix at chimicron.com. We have 500000 pieces of SIDR390DP-T1-GE3 in stock available now. Submit an inquiry for SIDR390DP-T1-GE3 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesTrenchFET® Gen IV
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C69.9A (Ta), 100A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs0.8mOhm @ 20A, 10V
Vgs(th) (Max) @ Id2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs153 nC @ 10 V
Vgs (Max)+20V, -16V
Input Capacitance (Ciss) (Max) @ Vds10180 pF @ 15 V
FET Feature-
Power Dissipation (Max)6.25W (Ta), 125W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePowerPAK® SO-8DC
Package / CasePowerPAK® SO-8
