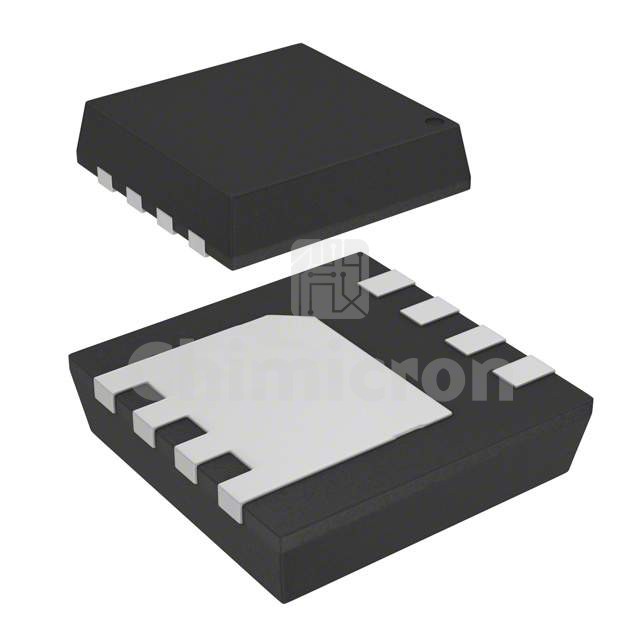

AONR66922
AONR66922

Manufacturer: Alpha and Omega Semiconductor, Inc.

Description: MOSFET N-CH 100V 15A/50A 8DFN
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: AlphaSGT™
In Stock:80800
Get Instant Quote
orSend BOM
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the AONR66922 Alpha and Omega Semiconductor, Inc. at chimicron.com. We have 80800 pieces of AONR66922 in stock available now. Submit an inquiry for AONR66922 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesAlphaSGT™
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)100 V
Current - Continuous Drain (Id) @ 25°C15A (Ta), 50A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs9mOhm @ 15A, 10V
Vgs(th) (Max) @ Id2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs46 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds2180 pF @ 50 V
FET Feature-
Power Dissipation (Max)4.1W (Ta), 52W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package8-DFN-EP (3.3x3.3)
Package / Case8-PowerWDFN
