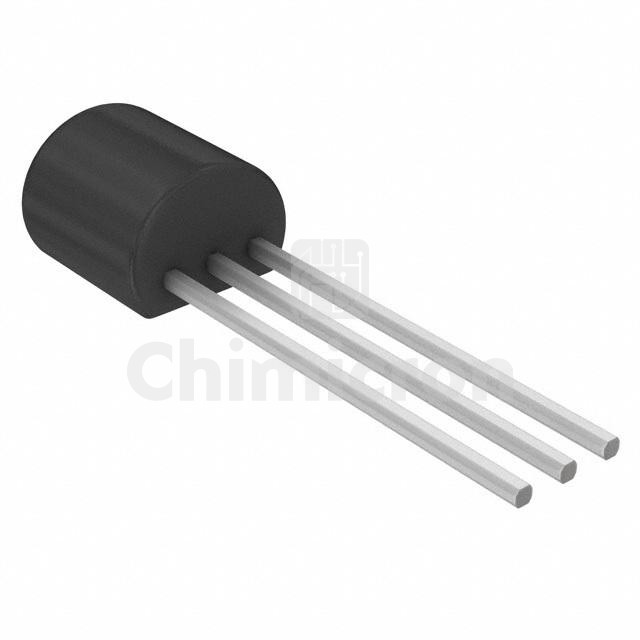

TN0702N3-G
Manufacturer: Roving Networks / Microchip Technology
Description: MOSFET N-CH 20V 530MA TO92-3
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: -
In Stock:20000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the TN0702N3-G Roving Networks / Microchip Technology at chimicron.com. We have 20000 pieces of TN0702N3-G in stock available now. Submit an inquiry for TN0702N3-G or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageBulk
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C530mA (Tj)
Drive Voltage (Max Rds On, Min Rds On)2V, 5V
Rds On (Max) @ Id, Vgs1.3Ohm @ 500mA, 5V
Vgs(th) (Max) @ Id1V @ 1mA
Gate Charge (Qg) (Max) @ Vgs-
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds200 pF @ 20 V
FET Feature-
Power Dissipation (Max)1W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-92-3
Package / CaseTO-226-3, TO-92-3 (TO-226AA)
