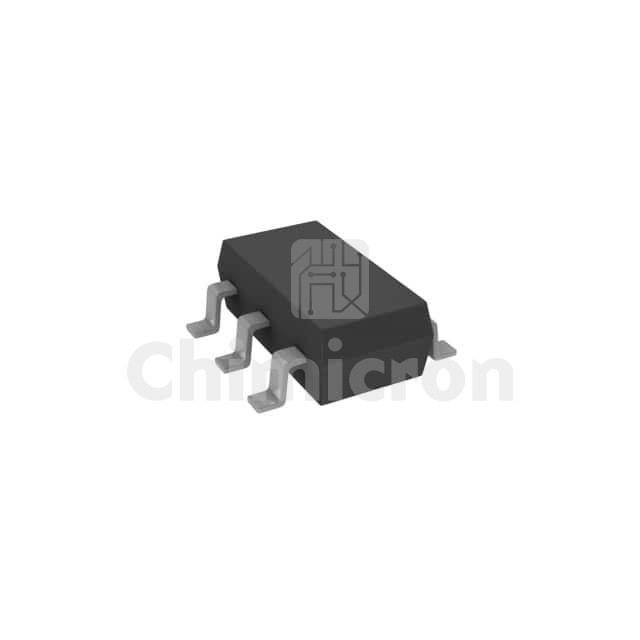

BSD314SPEH6327XTSA1
Manufacturer: IR (Infineon Technologies)
Description: MOSFET P-CH 30V 1.5A SOT363-6
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: OptiMOS™
In Stock:1349
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the BSD314SPEH6327XTSA1 IR (Infineon Technologies) at chimicron.com. We have 1349 pieces of BSD314SPEH6327XTSA1 in stock available now. Submit an inquiry for BSD314SPEH6327XTSA1 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesOptiMOS™
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C1.5A (Ta)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs140mOhm @ 1.5A, 10V
Vgs(th) (Max) @ Id2V @ 6.3µA
Gate Charge (Qg) (Max) @ Vgs2.9 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds294 pF @ 15 V
FET Feature-
Power Dissipation (Max)500mW (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePG-SOT363-6
Package / Case6-VSSOP, SC-88, SOT-363
