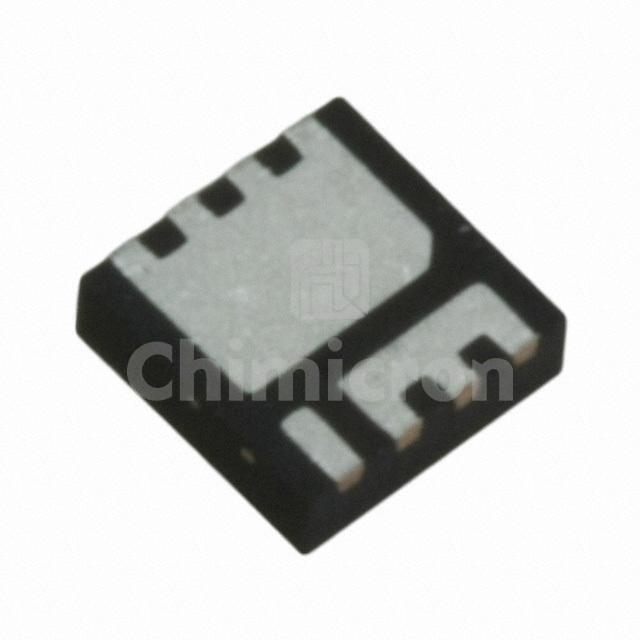

IRFH5302TRPBF
Manufacturer: IR (Infineon Technologies)
Description: MOSFET N-CH 30V 32A/100A PQFN
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: HEXFET®
In Stock:2800000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the IRFH5302TRPBF IR (Infineon Technologies) at chimicron.com. We have 2800000 pieces of IRFH5302TRPBF in stock available now. Submit an inquiry for IRFH5302TRPBF or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesHEXFET®
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C32A (Ta), 100A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs2.1mOhm @ 50A, 10V
Vgs(th) (Max) @ Id2.35V @ 100µA
Gate Charge (Qg) (Max) @ Vgs76 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds4400 pF @ 15 V
FET Feature-
Power Dissipation (Max)3.6W (Ta), 100W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePQFN (5x6) Single Die
Package / Case8-PowerVDFN
