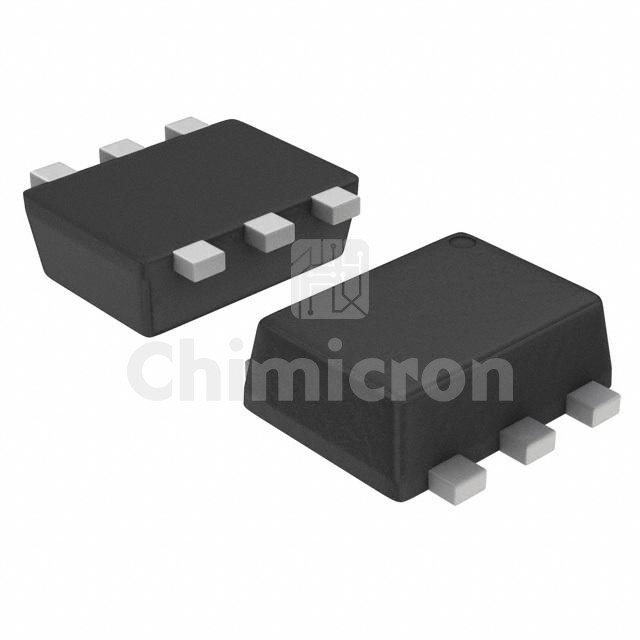

SSM6J215FE(TE85L,F
Manufacturer: Toshiba Electronic Devices and Storage Corporation
Description: MOSFET P CH 20V 3.4A ES6
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: U-MOSVI
In Stock:525
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the SSM6J215FE(TE85L,F Toshiba Electronic Devices and Storage Corporation at chimicron.com. We have 525 pieces of SSM6J215FE(TE85L,F in stock available now. Submit an inquiry for SSM6J215FE(TE85L,F or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesU-MOSVI
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C3.4A (Ta)
Drive Voltage (Max Rds On, Min Rds On)1.5V, 4.5V
Rds On (Max) @ Id, Vgs59mOhm @ 3A, 4.5V
Vgs(th) (Max) @ Id1V @ 1mA
Gate Charge (Qg) (Max) @ Vgs10.4 nC @ 4.5 V
Vgs (Max)±8V
Input Capacitance (Ciss) (Max) @ Vds630 pF @ 10 V
FET Feature-
Power Dissipation (Max)500mW (Ta)
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageES6
Package / CaseSOT-563, SOT-666
