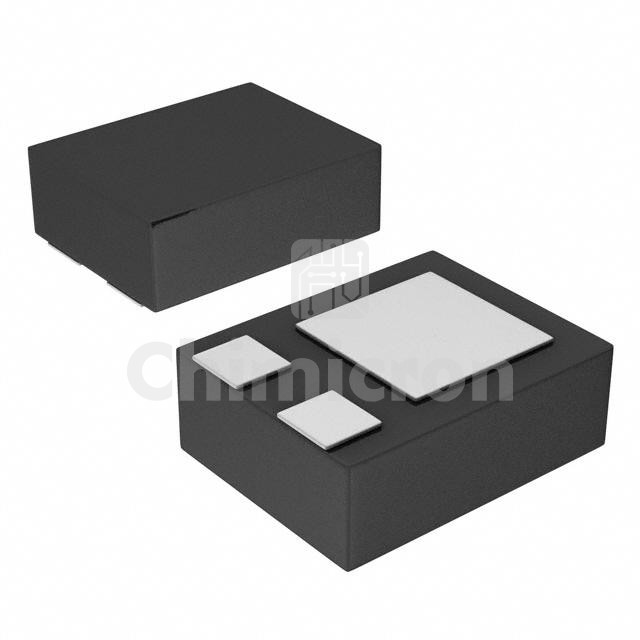

DMP2104LP-7
Manufacturer: Zetex Semiconductors (Diodes Inc.)
Description: MOSFET P-CH 20V 1.5A 3DFN1411
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: -
In Stock:18075
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the DMP2104LP-7 Zetex Semiconductors (Diodes Inc.) at chimicron.com. We have 18075 pieces of DMP2104LP-7 in stock available now. Submit an inquiry for DMP2104LP-7 or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C1.5A (Ta)
Drive Voltage (Max Rds On, Min Rds On)1.8V, 4.5V
Rds On (Max) @ Id, Vgs150mOhm @ 950mA, 4.5V
Vgs(th) (Max) @ Id1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs-
Vgs (Max)±12V
Input Capacitance (Ciss) (Max) @ Vds320 pF @ 16 V
FET Feature-
Power Dissipation (Max)500mW (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package3-DFN1411 (1.4x1.1)
Package / Case3-XDFN
