IRL60HS118
Manufacturer: IR (Infineon Technologies)
Description: MOSFET N-CH 60V 18.5A 6PQFN
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: -
In Stock:52500
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the IRL60HS118 IR (Infineon Technologies) at chimicron.com. We have 52500 pieces of IRL60HS118 in stock available now. Submit an inquiry for IRL60HS118 or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)60 V
Current - Continuous Drain (Id) @ 25°C18.5A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs17mOhm @ 11A, 10V
Vgs(th) (Max) @ Id2.3V @ 10µA
Gate Charge (Qg) (Max) @ Vgs8 nC @ 4.5 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds660 pF @ 25 V
FET Feature-
Power Dissipation (Max)11.5W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount

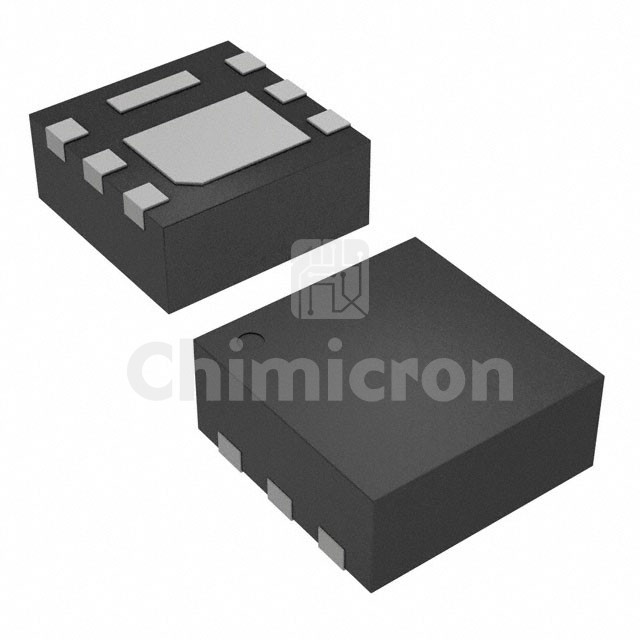

Supplier Device Package6-PQFN (2x2)
Package / Case6-VDFN Exposed Pad
