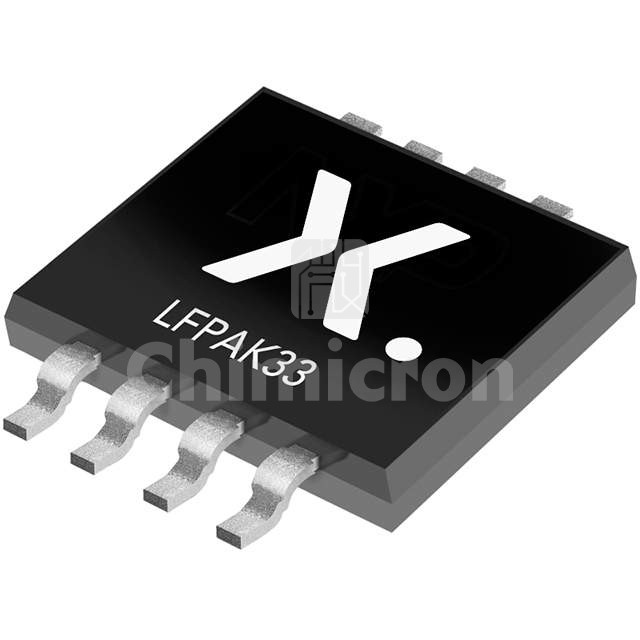

PSMN1R5-25MLHX
Manufacturer: Nexperia
Description: MOSFET N-CH 25V 150A LFPAK33
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: -
In Stock:4725
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the PSMN1R5-25MLHX Nexperia at chimicron.com. We have 4725 pieces of PSMN1R5-25MLHX in stock available now. Submit an inquiry for PSMN1R5-25MLHX or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)25 V
Current - Continuous Drain (Id) @ 25°C150A (Ta)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs1.81mOhm @ 25A, 10V
Vgs(th) (Max) @ Id2.2V @ 1mA
Gate Charge (Qg) (Max) @ Vgs58 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds3167 pF @ 12 V
FET Feature-
Power Dissipation (Max)106W (Ta)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageLFPAK33
Package / CaseSOT-1210, 8-LFPAK33 (5-Lead)
