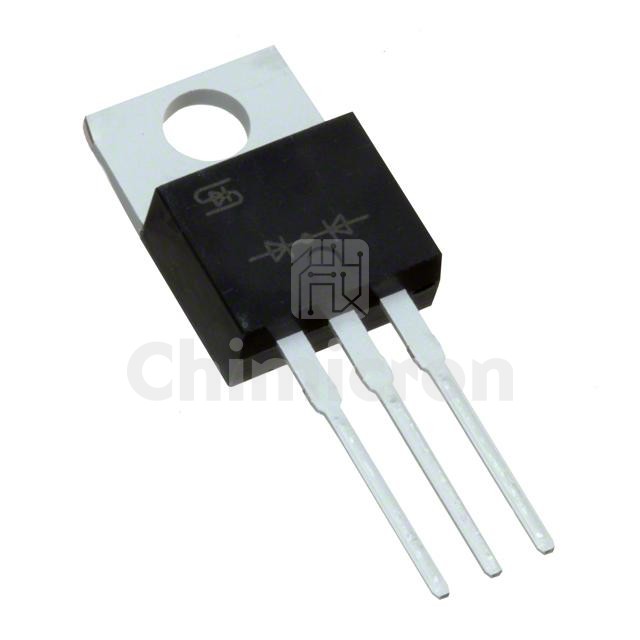

TSM100N06CZ C0G
Manufacturer: TSC (Taiwan Semiconductor)
Description: MOSFET N-CHANNEL 60V 100A TO220
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: -
In Stock:68817
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the TSM100N06CZ C0G TSC (Taiwan Semiconductor) at chimicron.com. We have 68817 pieces of TSM100N06CZ C0G in stock available now. Submit an inquiry for TSM100N06CZ C0G or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTube
Part StatusNot For New Designs
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)60 V
Current - Continuous Drain (Id) @ 25°C100A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs6.7mOhm @ 30A, 10V
Vgs(th) (Max) @ Id4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs92 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds4382 pF @ 30 V
FET Feature-
Power Dissipation (Max)167W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-220
Package / CaseTO-220-3
