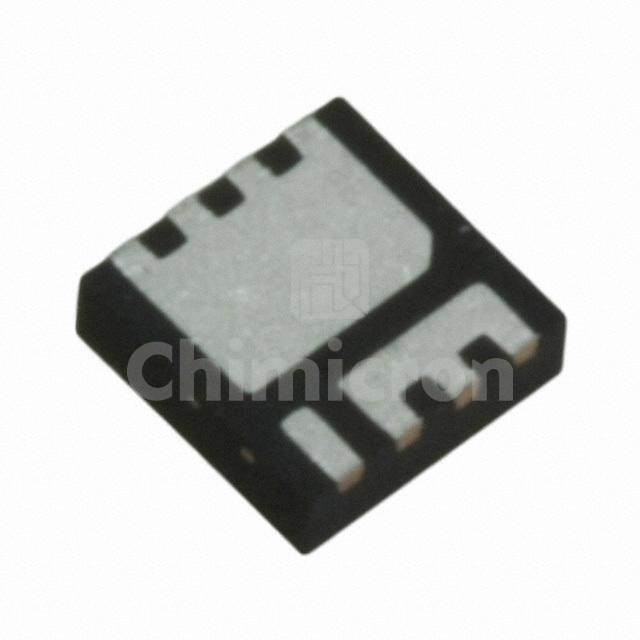

IRFH3707TRPBF
Manufacturer: IR (Infineon Technologies)
Description: MOSFET N-CH 30V 12A/29A 8PQFN
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: HEXFET®
In Stock:976200
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the IRFH3707TRPBF IR (Infineon Technologies) at chimicron.com. We have 976200 pieces of IRFH3707TRPBF in stock available now. Submit an inquiry for IRFH3707TRPBF or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesHEXFET®
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C12A (Ta), 29A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs12.4mOhm @ 12A, 10V
Vgs(th) (Max) @ Id2.35V @ 25µA
Gate Charge (Qg) (Max) @ Vgs8.1 nC @ 4.5 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds755 pF @ 15 V
FET Feature-
Power Dissipation (Max)2.8W (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package8-PQFN (3x3)
Package / Case8-PowerVDFN
