SI7655DN-T1-GE3
Manufacturer: Vishay / Siliconix
Description: MOSFET P-CH 20V 40A PPAK1212-8S
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: TrenchFET®
In Stock:30378
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the SI7655DN-T1-GE3 Vishay / Siliconix at chimicron.com. We have 30378 pieces of SI7655DN-T1-GE3 in stock available now. Submit an inquiry for SI7655DN-T1-GE3 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesTrenchFET®
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C40A (Tc)
Drive Voltage (Max Rds On, Min Rds On)2.5V, 10V
Rds On (Max) @ Id, Vgs3.6mOhm @ 20A, 10V
Vgs(th) (Max) @ Id1.1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs225 nC @ 10 V
Vgs (Max)±12V
Input Capacitance (Ciss) (Max) @ Vds6600 pF @ 10 V
FET Feature-
Power Dissipation (Max)4.8W (Ta), 57W (Tc)
Operating Temperature-50°C ~ 150°C (TJ)
Mounting TypeSurface Mount

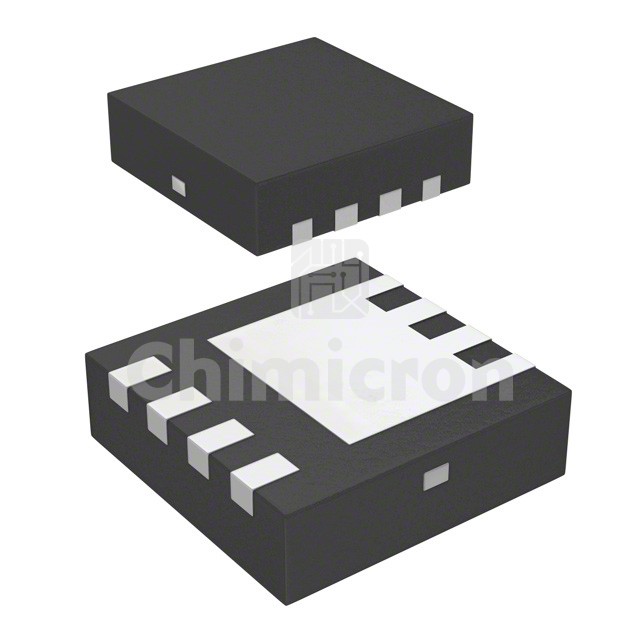

Supplier Device PackagePowerPAK® 1212-8S (3.3x3.3)
Package / CasePowerPAK® 1212-8S
