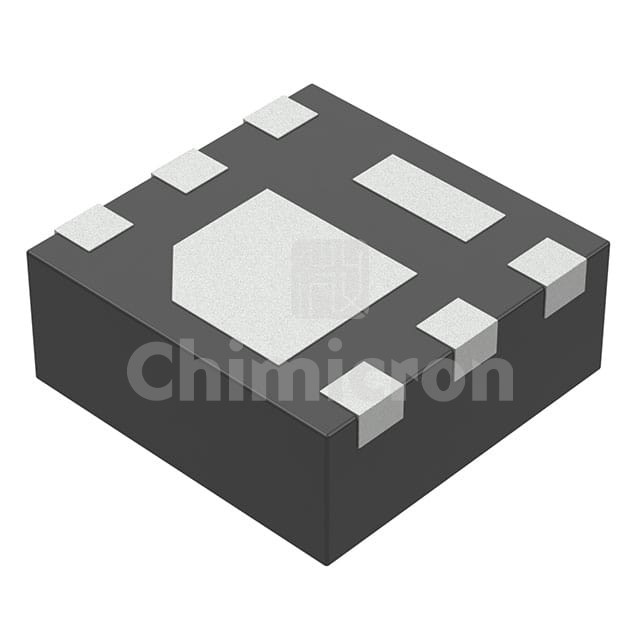

CSD13202Q2
Manufacturer: Texas
Description: MOSFET N-CH 12V 22A 6WSON
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: NexFET™
In Stock:5523
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the CSD13202Q2 Texas at chimicron.com. We have 5523 pieces of CSD13202Q2 in stock available now. Submit an inquiry for CSD13202Q2 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesNexFET™
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)12 V
Current - Continuous Drain (Id) @ 25°C22A (Ta)
Drive Voltage (Max Rds On, Min Rds On)2.5V, 4.5V
Rds On (Max) @ Id, Vgs9.3mOhm @ 5A, 4.5V
Vgs(th) (Max) @ Id1.1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs6.6 nC @ 4.5 V
Vgs (Max)±8V
Input Capacitance (Ciss) (Max) @ Vds997 pF @ 6 V
FET Feature-
Power Dissipation (Max)2.7W (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package6-WSON (2x2)
Package / Case6-VDFN Exposed Pad
