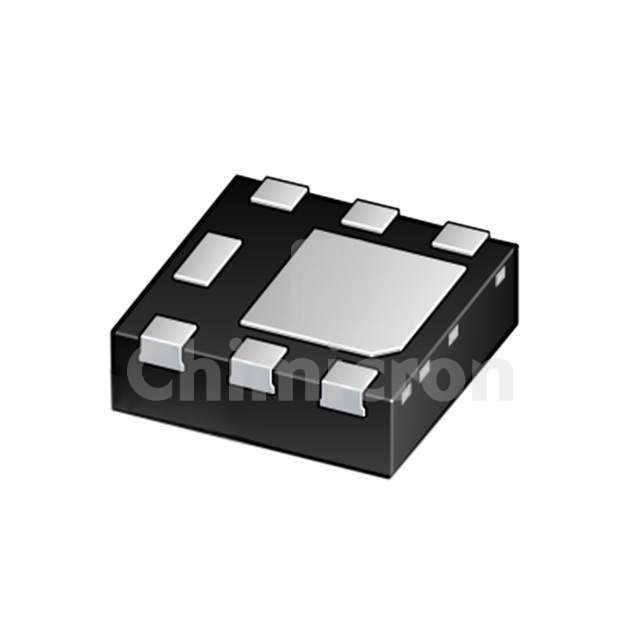

PMPB10XNEAX
Manufacturer: Nexperia
Description: MOSFET N-CH 20V 9A DFN2020MD-6
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: Automotive, AEC-Q101, TrenchMOS™
In Stock:460896
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the PMPB10XNEAX Nexperia at chimicron.com. We have 460896 pieces of PMPB10XNEAX in stock available now. Submit an inquiry for PMPB10XNEAX or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesAutomotive, AEC-Q101, TrenchMOS™
PackageTape & Reel (TR)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C9A (Ta)
Drive Voltage (Max Rds On, Min Rds On)1.8V, 4.5V
Rds On (Max) @ Id, Vgs14mOhm @ 9A, 4.5V
Vgs(th) (Max) @ Id0.9V @ 250µA
Gate Charge (Qg) (Max) @ Vgs34 nC @ 4.5 V
Vgs (Max)±12V
Input Capacitance (Ciss) (Max) @ Vds2.175 nF @ 10 V
FET Feature-
Power Dissipation (Max)1.7W (Ta), 12.5W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageDFN2020MD-6
Package / Case6-UDFN Exposed Pad
