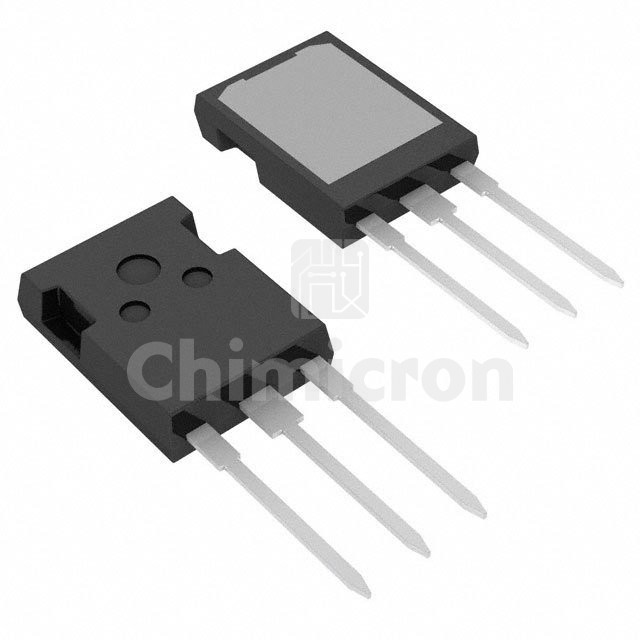

IXFH140N20X3
Manufacturer: Wickmann / Littelfuse
Description: MOSFET N-CH 200V 140A TO247
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: HiPerFET™
In Stock:5000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the IXFH140N20X3 Wickmann / Littelfuse at chimicron.com. We have 5000 pieces of IXFH140N20X3 in stock available now. Submit an inquiry for IXFH140N20X3 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesHiPerFET™
PackageTube
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)200 V
Current - Continuous Drain (Id) @ 25°C140A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs9.6mOhm @ 70A, 10V
Vgs(th) (Max) @ Id4.5V @ 4mA
Gate Charge (Qg) (Max) @ Vgs127 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds7660 pF @ 25 V
FET Feature-
Power Dissipation (Max)520W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-247
Package / CaseTO-247-3
