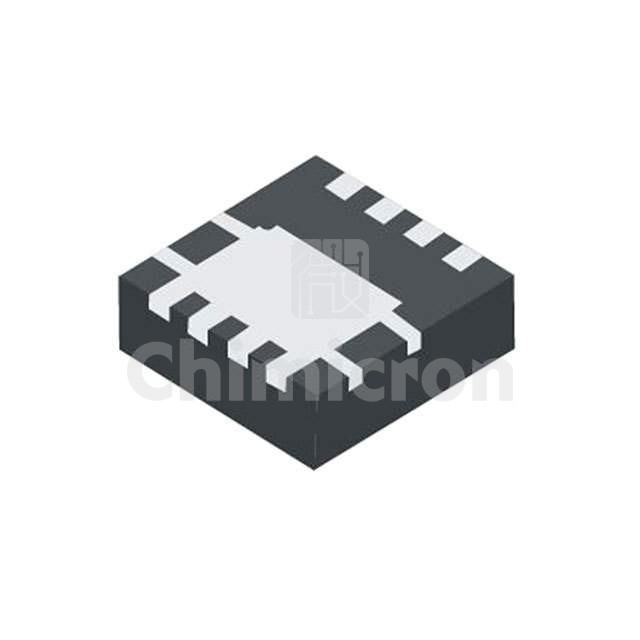

DMN10H170SFG-7
Manufacturer: Zetex Semiconductors (Diodes Inc.)
Description: MOSFET N-CH 100V PWRDI3333
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: -
In Stock:1448
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the DMN10H170SFG-7 Zetex Semiconductors (Diodes Inc.) at chimicron.com. We have 1448 pieces of DMN10H170SFG-7 in stock available now. Submit an inquiry for DMN10H170SFG-7 or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)100 V
Current - Continuous Drain (Id) @ 25°C2.9A (Ta), 8.5A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs122mOhm @ 3.3A, 10V
Vgs(th) (Max) @ Id3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs14.9 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds870.7 pF @ 25 V
FET Feature-
Power Dissipation (Max)940mW (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePowerDI3333-8
Package / Case8-PowerVDFN
