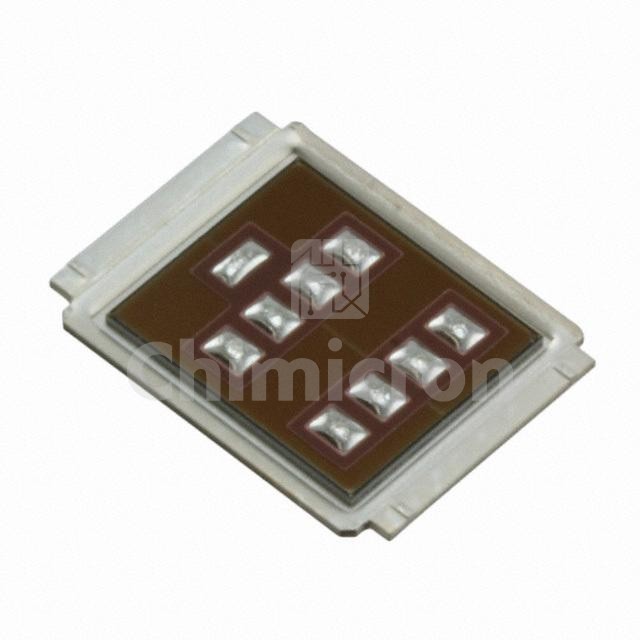

IRF7769L2TRPBF
Manufacturer: Rochester Electronics
Description: IRF7769 - 12V-300V N-CHANNEL POW
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: HEXFET®
In Stock:33283
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the IRF7769L2TRPBF Rochester Electronics at chimicron.com. We have 33283 pieces of IRF7769L2TRPBF in stock available now. Submit an inquiry for IRF7769L2TRPBF or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesHEXFET®
PackageBulk
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)100 V
Current - Continuous Drain (Id) @ 25°C375A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs3.5mOhm @ 74A, 10V
Vgs(th) (Max) @ Id4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs300 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds11.56 pF @ 25 V
FET Feature-
Power Dissipation (Max)3.3W (Ta), 125W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageDIRECTFET L8
Package / CaseDirectFET™ Isometric L8
