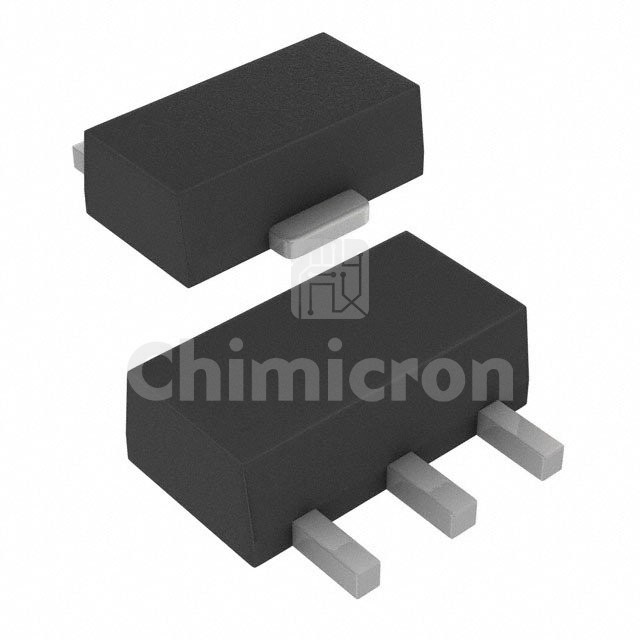

TN2504N8-G
Manufacturer: Roving Networks / Microchip Technology
Description: MOSFET N-CH 40V 890MA TO243AA
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: -
In Stock:200000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the TN2504N8-G Roving Networks / Microchip Technology at chimicron.com. We have 200000 pieces of TN2504N8-G in stock available now. Submit an inquiry for TN2504N8-G or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)40 V
Current - Continuous Drain (Id) @ 25°C890mA (Tj)
Drive Voltage (Max Rds On, Min Rds On)5V, 10V
Rds On (Max) @ Id, Vgs1Ohm @ 1.5A, 10V
Vgs(th) (Max) @ Id1.6V @ 1mA
Gate Charge (Qg) (Max) @ Vgs-
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds125 pF @ 20 V
FET Feature-
Power Dissipation (Max)1.6W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageTO-243AA (SOT-89)
Package / CaseTO-243AA
