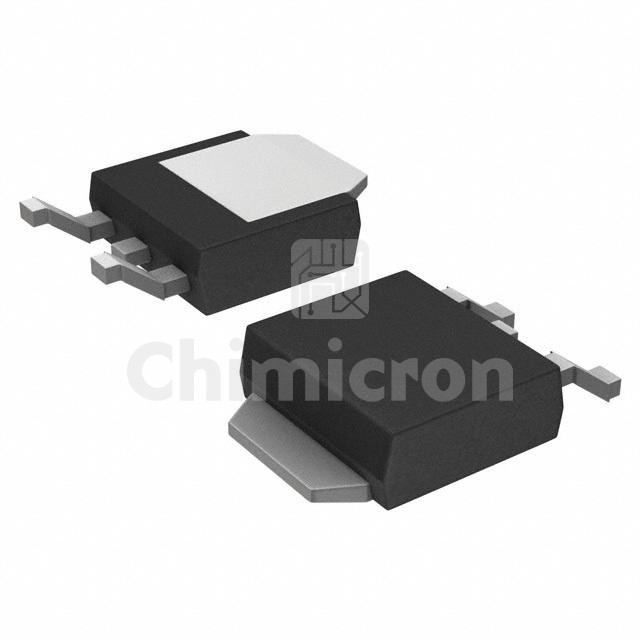

NTD4805NT4G
Manufacturer: Sanyo Semiconductor/ON Semiconductor
Description: MOSFET N-CH 30V 12.7A/95A DPAK
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: -
In Stock:269018
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the NTD4805NT4G Sanyo Semiconductor/ON Semiconductor at chimicron.com. We have 269018 pieces of NTD4805NT4G in stock available now. Submit an inquiry for NTD4805NT4G or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C12.7A (Ta), 95A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 11.5V
Rds On (Max) @ Id, Vgs5mOhm @ 30A, 10V
Vgs(th) (Max) @ Id2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs48 nC @ 11.5 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds2865 pF @ 12 V
FET Feature-
Power Dissipation (Max)1.41W (Ta), 79W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageDPAK
Package / CaseTO-252-3, DPak (2 Leads + Tab), SC-63
