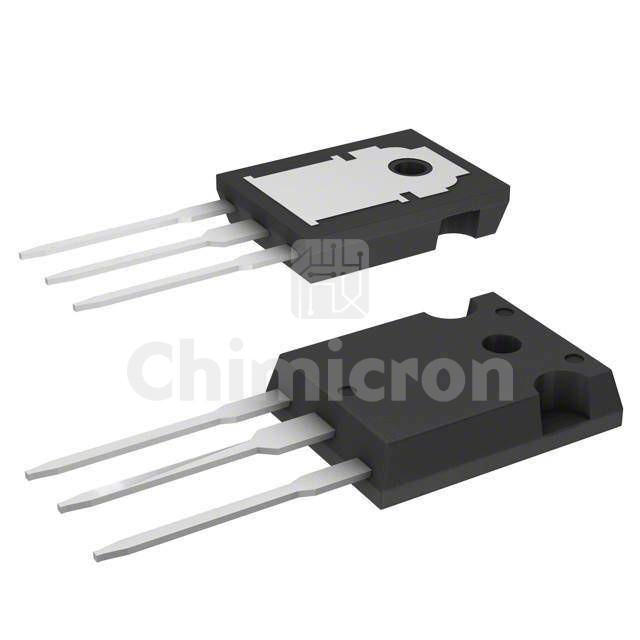

STW56NM60N
STW56NM60N

Manufacturer: STMicroelectronics

Description: MOSFET N-CH 600V 45A TO247
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: MDmesh™ II
In Stock:1200
Get Instant Quote
orSend BOM
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the STW56NM60N STMicroelectronics at chimicron.com. We have 1200 pieces of STW56NM60N in stock available now. Submit an inquiry for STW56NM60N or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesMDmesh™ II
PackageTube
Part StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)600 V
Current - Continuous Drain (Id) @ 25°C45A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs60mOhm @ 22.5A, 10V
Vgs(th) (Max) @ Id4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs150 nC @ 10 V
Vgs (Max)±25V
Input Capacitance (Ciss) (Max) @ Vds4800 pF @ 50 V
FET Feature-
Power Dissipation (Max)300W (Tc)
Operating Temperature150°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-247
Package / CaseTO-247-3
