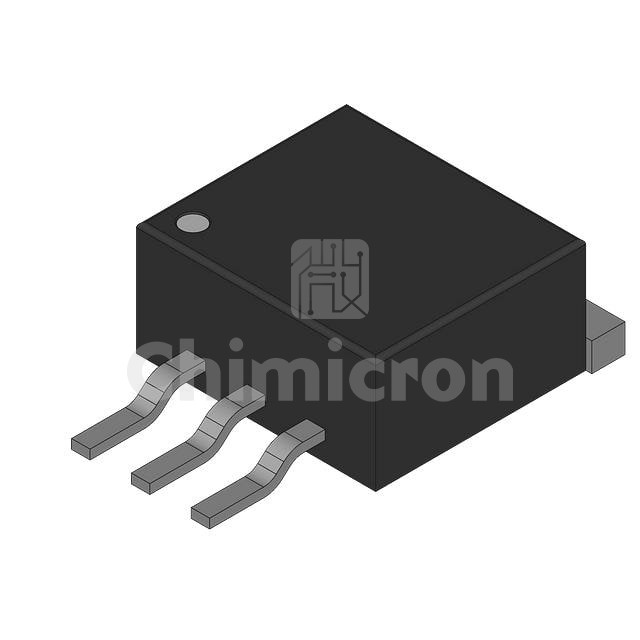

IPD50N06S409ATMA2
Manufacturer: IR (Infineon Technologies)
Description: MOSFET N-CH 60V 50A TO252-31
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: Automotive, AEC-Q101, OptiMOS™
In Stock:10500
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the IPD50N06S409ATMA2 IR (Infineon Technologies) at chimicron.com. We have 10500 pieces of IPD50N06S409ATMA2 in stock available now. Submit an inquiry for IPD50N06S409ATMA2 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesAutomotive, AEC-Q101, OptiMOS™
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)60 V
Current - Continuous Drain (Id) @ 25°C50A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs9mOhm @ 50A, 10V
Vgs(th) (Max) @ Id4V @ 34µA
Gate Charge (Qg) (Max) @ Vgs47.1 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds3785 pF @ 25 V
FET Feature-
Power Dissipation (Max)71W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePG-TO252-3-11
Package / CaseTO-252-3, DPak (2 Leads + Tab), SC-63
