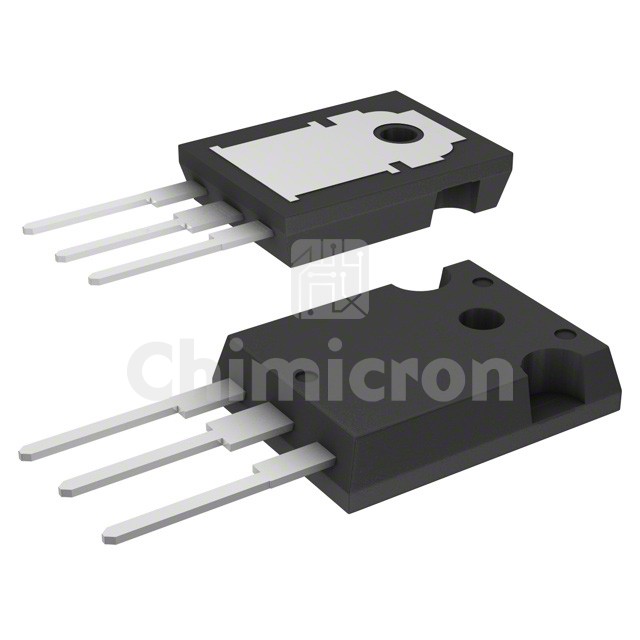

STW20NM60FD
STW20NM60FD

Manufacturer: STMicroelectronics

Description: MOSFET N-CH 600V 20A TO247-3
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: FDmesh™
In Stock:3000
Get Instant Quote
orSend BOM
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the STW20NM60FD STMicroelectronics at chimicron.com. We have 3000 pieces of STW20NM60FD in stock available now. Submit an inquiry for STW20NM60FD or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesFDmesh™
PackageTube
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)600 V
Current - Continuous Drain (Id) @ 25°C20A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs290mOhm @ 10A, 10V
Vgs(th) (Max) @ Id5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs37 nC @ 10 V
Vgs (Max)±30V
Input Capacitance (Ciss) (Max) @ Vds1300 pF @ 25 V
FET Feature-
Power Dissipation (Max)214W (Tc)
Operating Temperature-65°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-247-3
Package / CaseTO-247-3
