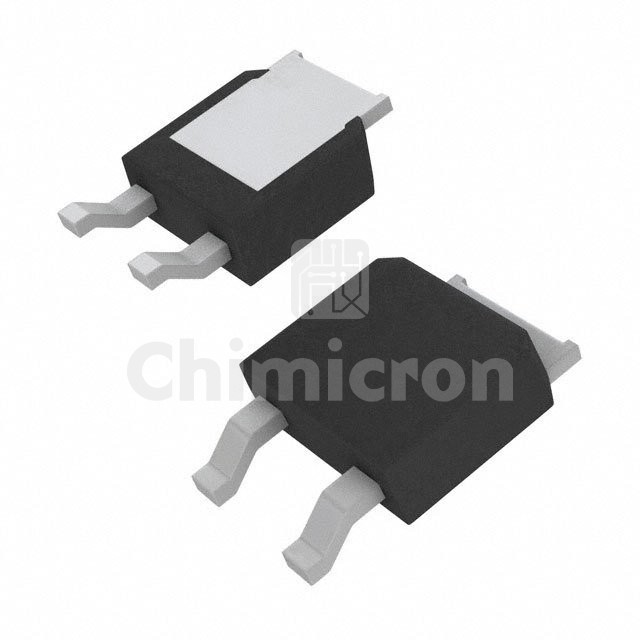

IPD80R450P7ATMA1
IPD80R450P7ATMA1

Manufacturer: IR (Infineon Technologies)

Description: MOSFET N-CH 800V 11A TO252
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: CoolMOS™
In Stock:1575
Get Instant Quote
orSend BOM
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the IPD80R450P7ATMA1 IR (Infineon Technologies) at chimicron.com. We have 1575 pieces of IPD80R450P7ATMA1 in stock available now. Submit an inquiry for IPD80R450P7ATMA1 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesCoolMOS™
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)800 V
Current - Continuous Drain (Id) @ 25°C11A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs450mOhm @ 4.5A, 10V
Vgs(th) (Max) @ Id3.5V @ 220µA
Gate Charge (Qg) (Max) @ Vgs24 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds770 pF @ 500 V
FET FeatureSuper Junction
Power Dissipation (Max)73W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageTO-252
Package / CaseTO-252-3, DPak (2 Leads + Tab), SC-63
