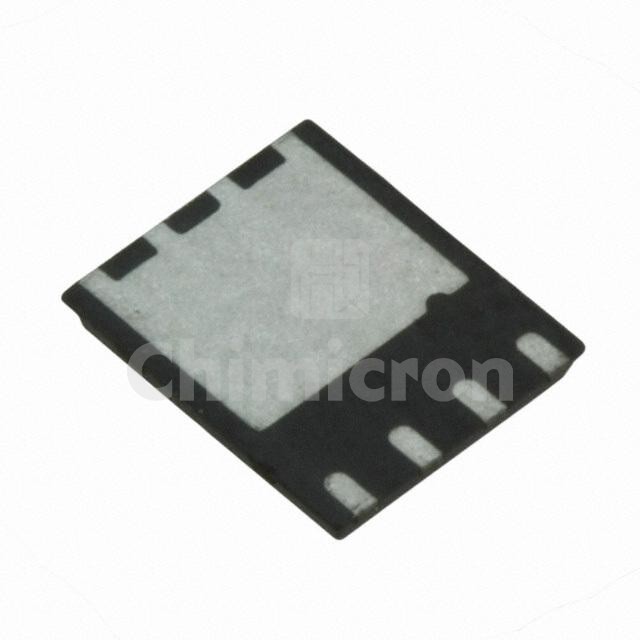

IRFH5300TRPBF
Manufacturer: IR (Infineon Technologies)
Description: MOSFET N-CH 30V 40A/100A 8PQFN
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: HEXFET®
In Stock:67515
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the IRFH5300TRPBF IR (Infineon Technologies) at chimicron.com. We have 67515 pieces of IRFH5300TRPBF in stock available now. Submit an inquiry for IRFH5300TRPBF or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesHEXFET®
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C40A (Ta), 100A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs1.4mOhm @ 50A, 10V
Vgs(th) (Max) @ Id2.35V @ 150µA
Gate Charge (Qg) (Max) @ Vgs120 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds7200 pF @ 15 V
FET Feature-
Power Dissipation (Max)3.6W (Ta), 250W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package8-PQFN (5x6)
Package / Case8-PowerVDFN
