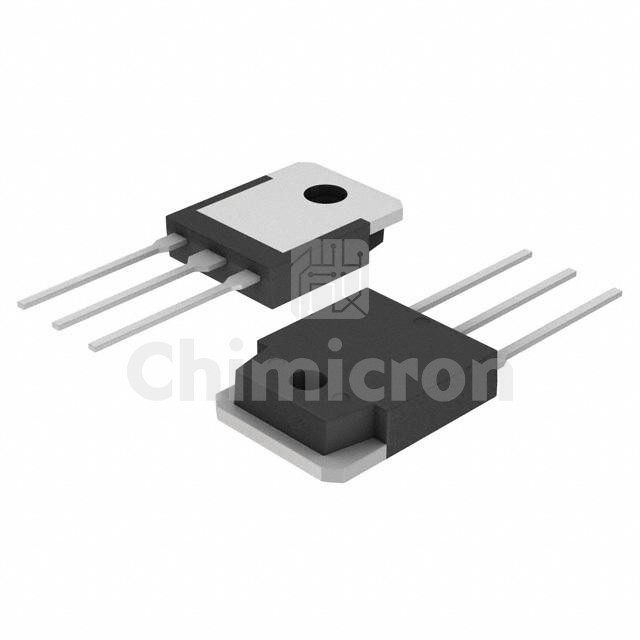

FQA70N15
Manufacturer: Rochester Electronics
Description: POWER FIELD-EFFECT TRANSISTOR, 7
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: QFET®
In Stock:681400
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the FQA70N15 Rochester Electronics at chimicron.com. We have 681400 pieces of FQA70N15 in stock available now. Submit an inquiry for FQA70N15 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesQFET®
PackageBulk
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)150 V
Current - Continuous Drain (Id) @ 25°C70A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs28mOhm @ 35A, 10V
Vgs(th) (Max) @ Id4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs175 nC @ 10 V
Vgs (Max)±25V
Input Capacitance (Ciss) (Max) @ Vds5.4 pF @ 25 V
FET Feature-
Power Dissipation (Max)330W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-3PN
Package / CaseTO-3P-3, SC-65-3
