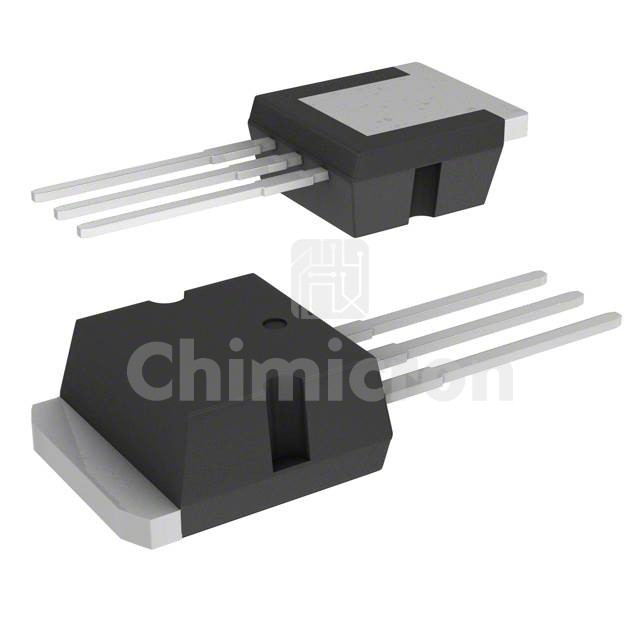

STB4NK60Z-1
Manufacturer: STMicroelectronics
Description: MOSFET N-CH 600V 4A I2PAK
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: SuperMESH™
In Stock:1100000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the STB4NK60Z-1 STMicroelectronics at chimicron.com. We have 1100000 pieces of STB4NK60Z-1 in stock available now. Submit an inquiry for STB4NK60Z-1 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesSuperMESH™
PackageTube
Part StatusNot For New Designs
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)600 V
Current - Continuous Drain (Id) @ 25°C4A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs2Ohm @ 2A, 10V
Vgs(th) (Max) @ Id4.5V @ 50µA
Gate Charge (Qg) (Max) @ Vgs26 nC @ 10 V
Vgs (Max)±30V
Input Capacitance (Ciss) (Max) @ Vds510 pF @ 25 V
FET Feature-
Power Dissipation (Max)70W (Tc)
Operating Temperature150°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageI2PAK
Package / CaseTO-262-3 Long Leads, I²Pak, TO-262AA
