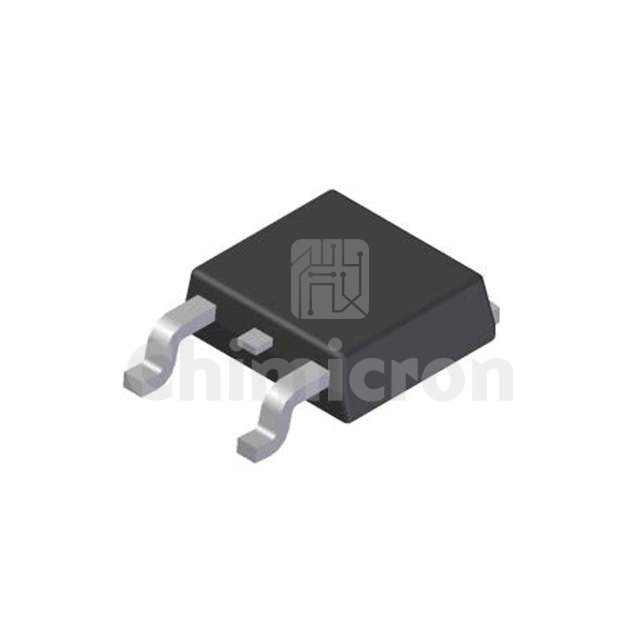

DMTH6009LK3-13
Manufacturer: Zetex Semiconductors (Diodes Inc.)
Description: MOSFET N-CH 60V 14.2A/59A TO252
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: -
In Stock:50000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the DMTH6009LK3-13 Zetex Semiconductors (Diodes Inc.) at chimicron.com. We have 50000 pieces of DMTH6009LK3-13 in stock available now. Submit an inquiry for DMTH6009LK3-13 or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)60 V
Current - Continuous Drain (Id) @ 25°C14.2A (Ta), 59A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs10mOhm @ 13.5A, 10V
Vgs(th) (Max) @ Id2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs33.5 nC @ 10 V
Vgs (Max)±16V
Input Capacitance (Ciss) (Max) @ Vds1925 pF @ 30 V
FET Feature-
Power Dissipation (Max)3.2W (Ta), 60W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageTO-252-3
Package / CaseTO-252-3, DPak (2 Leads + Tab), SC-63
