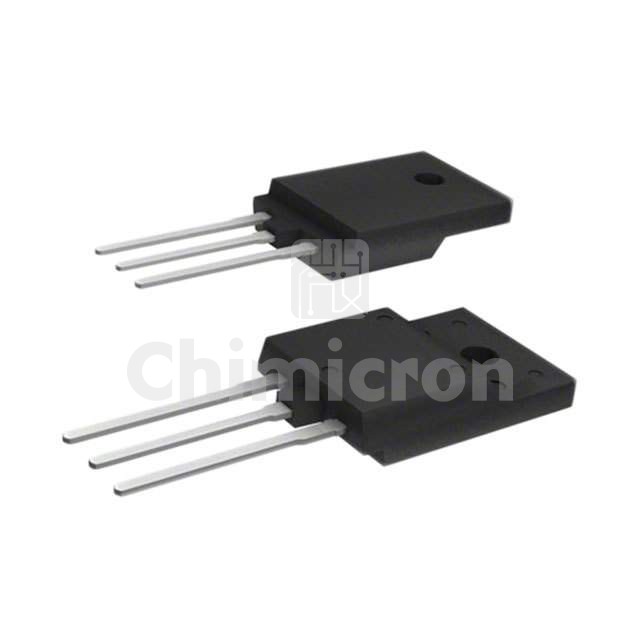

IPA60R120P7XKSA1
Manufacturer: Rochester Electronics
Description: IPA60R120 - COOLMOS, 600V SUPER
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: CoolMOS™ P7
In Stock:12000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the IPA60R120P7XKSA1 Rochester Electronics at chimicron.com. We have 12000 pieces of IPA60R120P7XKSA1 in stock available now. Submit an inquiry for IPA60R120P7XKSA1 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesCoolMOS™ P7
PackageBulk
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)600 V
Current - Continuous Drain (Id) @ 25°C26A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs120mOhm @ 8.2A, 10V
Vgs(th) (Max) @ Id4V @ 410µA
Gate Charge (Qg) (Max) @ Vgs36 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds1.544 pF @ 400 V
FET Feature-
Power Dissipation (Max)28W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackagePG-TO220 Full Pack
Package / CaseTO-220-3 Full Pack
