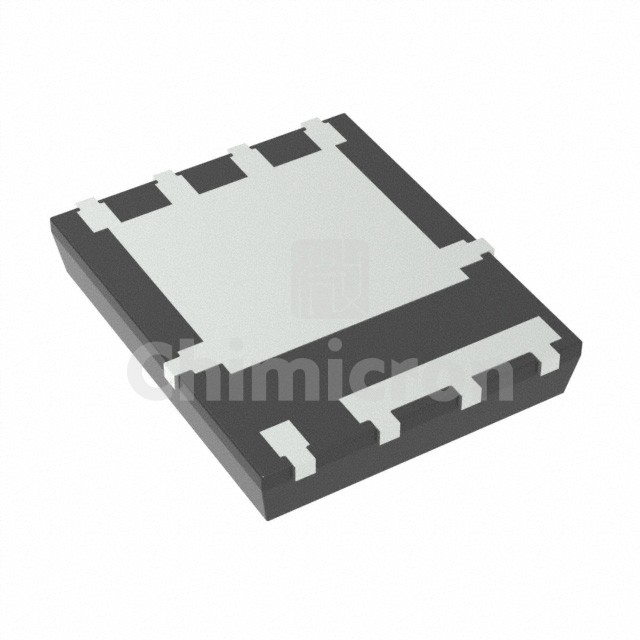

BSC014N06NSATMA1
Manufacturer: IR (Infineon Technologies)
Description: MOSFET N-CH 60V 30A/100A TDSON7
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: OptiMOS™
In Stock:6300
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the BSC014N06NSATMA1 IR (Infineon Technologies) at chimicron.com. We have 6300 pieces of BSC014N06NSATMA1 in stock available now. Submit an inquiry for BSC014N06NSATMA1 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesOptiMOS™
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)60 V
Current - Continuous Drain (Id) @ 25°C30A (Ta), 100A (Tc)
Drive Voltage (Max Rds On, Min Rds On)6V, 10V
Rds On (Max) @ Id, Vgs1.45mOhm @ 50A, 10V
Vgs(th) (Max) @ Id2.8V @ 120µA
Gate Charge (Qg) (Max) @ Vgs89 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds6500 pF @ 30 V
FET Feature-
Power Dissipation (Max)2.5W (Ta), 156W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePG-TDSON-8-17
Package / Case8-PowerTDFN
