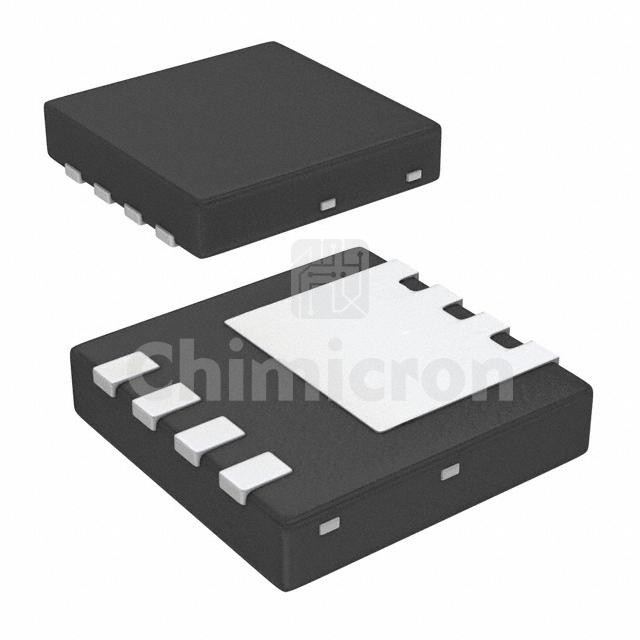

FDMC86259P
Manufacturer: Sanyo Semiconductor/ON Semiconductor
Description: MOSFET P-CH 150V 3.2A/13A PWR33
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: PowerTrench®
In Stock:22050
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the FDMC86259P Sanyo Semiconductor/ON Semiconductor at chimicron.com. We have 22050 pieces of FDMC86259P in stock available now. Submit an inquiry for FDMC86259P or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesPowerTrench®
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)150 V
Current - Continuous Drain (Id) @ 25°C3.2A (Ta), 13A (Tc)
Drive Voltage (Max Rds On, Min Rds On)6V, 10V
Rds On (Max) @ Id, Vgs107mOhm @ 3A, 10V
Vgs(th) (Max) @ Id4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs32 nC @ 10 V
Vgs (Max)±25V
Input Capacitance (Ciss) (Max) @ Vds2045 pF @ 75 V
FET Feature-
Power Dissipation (Max)2.3W (Ta), 62W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePower33
Package / Case8-PowerWDFN
