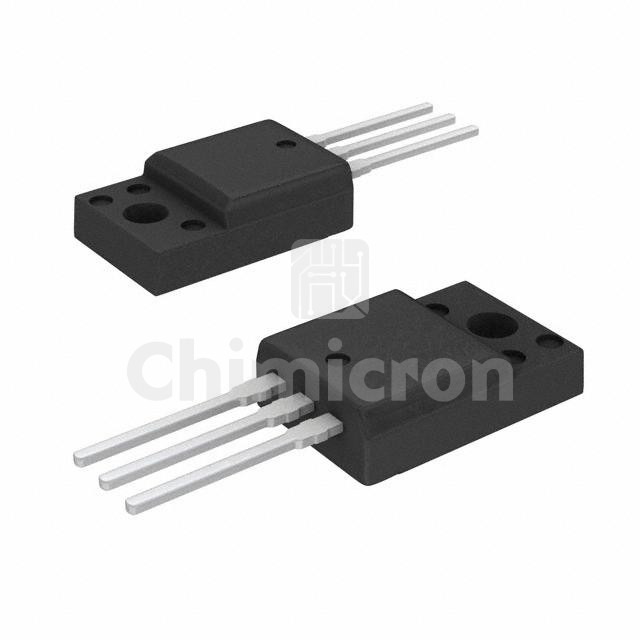

FCPF20N60
Manufacturer: Sanyo Semiconductor/ON Semiconductor
Description: MOSFET N-CH 600V 20A TO220F
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: SuperFET™
In Stock:1740
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the FCPF20N60 Sanyo Semiconductor/ON Semiconductor at chimicron.com. We have 1740 pieces of FCPF20N60 in stock available now. Submit an inquiry for FCPF20N60 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesSuperFET™
PackageTube
Part StatusNot For New Designs
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)600 V
Current - Continuous Drain (Id) @ 25°C20A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs190mOhm @ 10A, 10V
Vgs(th) (Max) @ Id5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs98 nC @ 10 V
Vgs (Max)±30V
Input Capacitance (Ciss) (Max) @ Vds3080 pF @ 25 V
FET Feature-
Power Dissipation (Max)39W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-220F
Package / CaseTO-220-3 Full Pack
