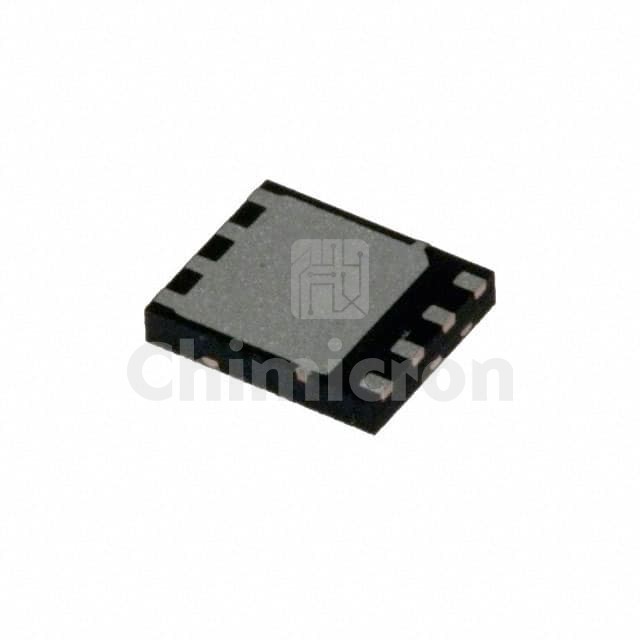

CSD16340Q3
Manufacturer: Texas
Description: MOSFET N-CH 25V 21A/60A 8VSON
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: NexFET™
In Stock:443560
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the CSD16340Q3 Texas at chimicron.com. We have 443560 pieces of CSD16340Q3 in stock available now. Submit an inquiry for CSD16340Q3 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesNexFET™
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)25 V
Current - Continuous Drain (Id) @ 25°C21A (Ta), 60A (Tc)
Drive Voltage (Max Rds On, Min Rds On)2.5V, 8V
Rds On (Max) @ Id, Vgs4.5mOhm @ 20A, 8V
Vgs(th) (Max) @ Id1.1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs9.2 nC @ 4.5 V
Vgs (Max)+10V, -8V
Input Capacitance (Ciss) (Max) @ Vds1350 pF @ 12.5 V
FET Feature-
Power Dissipation (Max)3W (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package8-VSON-CLIP (3.3x3.3)
Package / Case8-PowerTDFN
