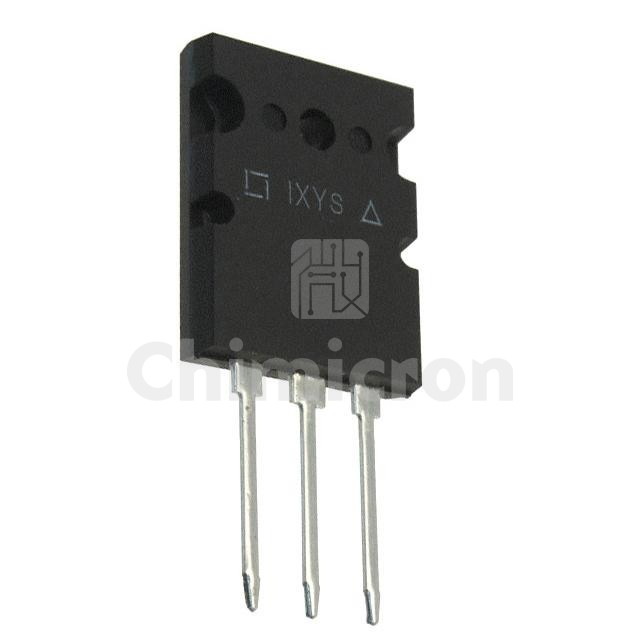

IXFB30N120P
Manufacturer: Wickmann / Littelfuse
Description: MOSFET N-CH 1200V 30A PLUS264
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: HiPerFET™, PolarP2™
In Stock:6230
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the IXFB30N120P Wickmann / Littelfuse at chimicron.com. We have 6230 pieces of IXFB30N120P in stock available now. Submit an inquiry for IXFB30N120P or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesHiPerFET™, PolarP2™
PackageTube
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)1200 V
Current - Continuous Drain (Id) @ 25°C30A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs350mOhm @ 500mA, 10V
Vgs(th) (Max) @ Id6.5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs310 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds22500 pF @ 25 V
FET Feature-
Power Dissipation (Max)1250W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackagePLUS264™
Package / CaseTO-264-3, TO-264AA
