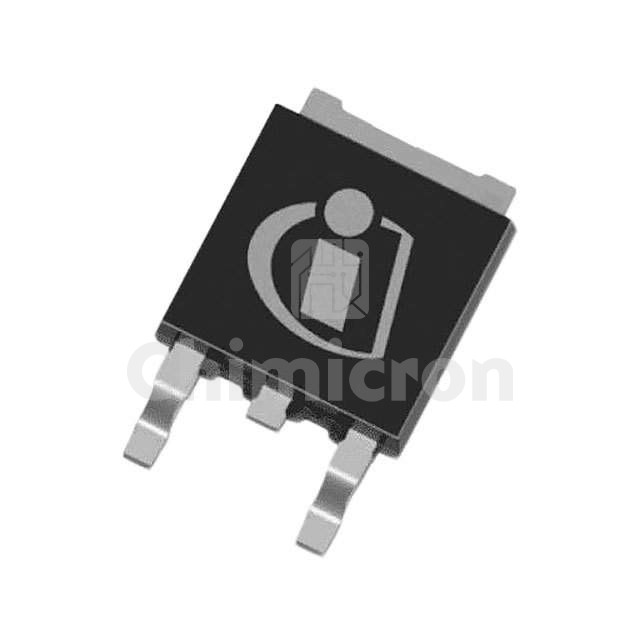

IPD95R750P7ATMA1
Manufacturer: IR (Infineon Technologies)
Description: MOSFET N-CH 950V 9A TO252-3
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: CoolMOS™ P7
In Stock:150000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the IPD95R750P7ATMA1 IR (Infineon Technologies) at chimicron.com. We have 150000 pieces of IPD95R750P7ATMA1 in stock available now. Submit an inquiry for IPD95R750P7ATMA1 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesCoolMOS™ P7
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)950 V
Current - Continuous Drain (Id) @ 25°C9A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs750mOhm @ 4.5A, 10V
Vgs(th) (Max) @ Id3.5V @ 220µA
Gate Charge (Qg) (Max) @ Vgs23 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds712 pF @ 400 V
FET Feature-
Power Dissipation (Max)73W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePG-TO252-3
Package / CaseTO-252-3, DPak (2 Leads + Tab), SC-63
