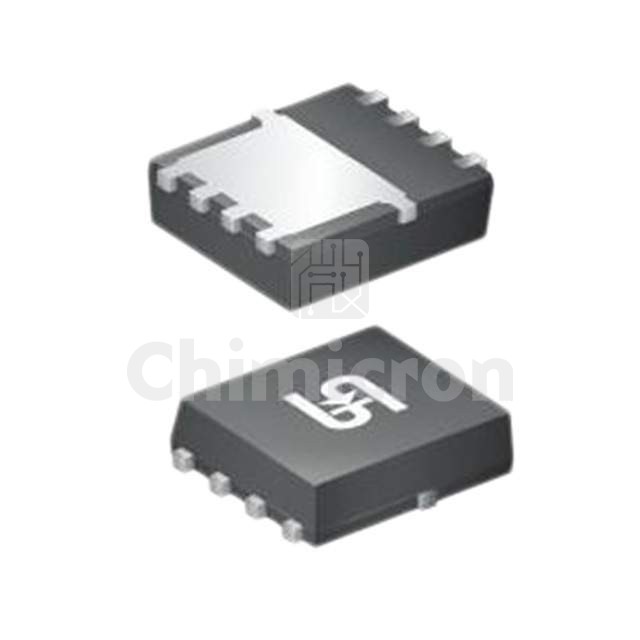

TSM038N03PQ33 RGG
Manufacturer: TSC (Taiwan Semiconductor)
Description: MOSFET N-CH 30V 78A 8PDFN
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: -
In Stock:9499
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the TSM038N03PQ33 RGG TSC (Taiwan Semiconductor) at chimicron.com. We have 9499 pieces of TSM038N03PQ33 RGG in stock available now. Submit an inquiry for TSM038N03PQ33 RGG or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C78A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs3.8mOhm @ 19A, 10V
Vgs(th) (Max) @ Id2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs25 nC @ 4.5 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds2557 pF @ 15 V
FET Feature-
Power Dissipation (Max)39W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package8-PDFN (3x3)
Package / Case8-PowerWDFN
