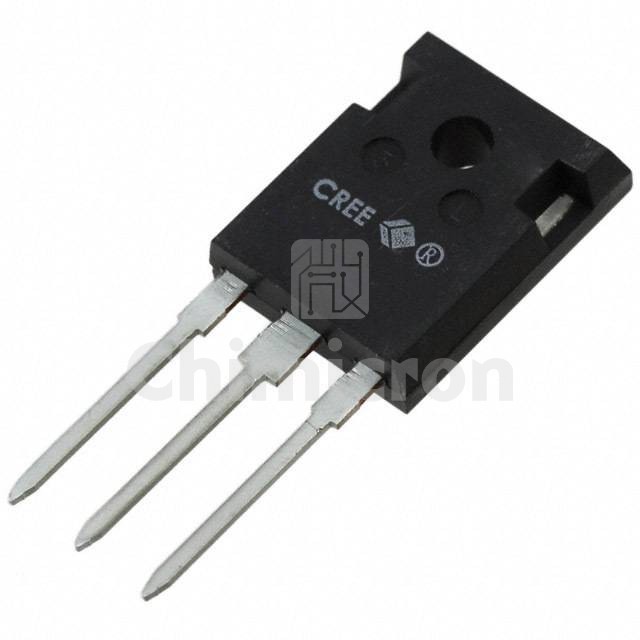

C2M0040120D
Manufacturer: Wolfspeed - a Cree company
Description: SICFET N-CH 1200V 60A TO247-3
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: Z-FET™
In Stock:2830
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the C2M0040120D Wolfspeed - a Cree company at chimicron.com. We have 2830 pieces of C2M0040120D in stock available now. Submit an inquiry for C2M0040120D or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesZ-FET™
PackageTube
Part StatusNot For New Designs
FET TypeN-Channel
TechnologySiCFET (Silicon Carbide)
Drain to Source Voltage (Vdss)1200 V
Current - Continuous Drain (Id) @ 25°C60A (Tc)
Drive Voltage (Max Rds On, Min Rds On)20V
Rds On (Max) @ Id, Vgs52mOhm @ 40A, 20V
Vgs(th) (Max) @ Id2.8V @ 10mA
Gate Charge (Qg) (Max) @ Vgs115 nC @ 20 V
Vgs (Max)+25V, -10V
Input Capacitance (Ciss) (Max) @ Vds1893 pF @ 1000 V
FET Feature-
Power Dissipation (Max)330W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-247-3
Package / CaseTO-247-3
