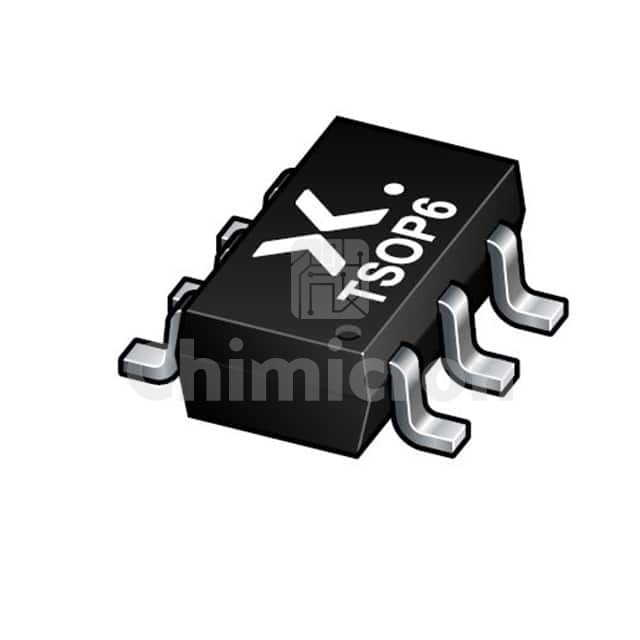

PMN40ENEX
Manufacturer: Nexperia
Description: MOSFET N-CH 30V 5.7A 6TSOP
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: -
In Stock:13870
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the PMN40ENEX Nexperia at chimicron.com. We have 13870 pieces of PMN40ENEX in stock available now. Submit an inquiry for PMN40ENEX or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C5.7A (Ta)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs38mOhm @ 4.5A, 10V
Vgs(th) (Max) @ Id2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs11 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds294 pF @ 15 V
FET Feature-
Power Dissipation (Max)530mW (Ta), 4.46W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package6-TSOP
Package / CaseSC-74, SOT-457
