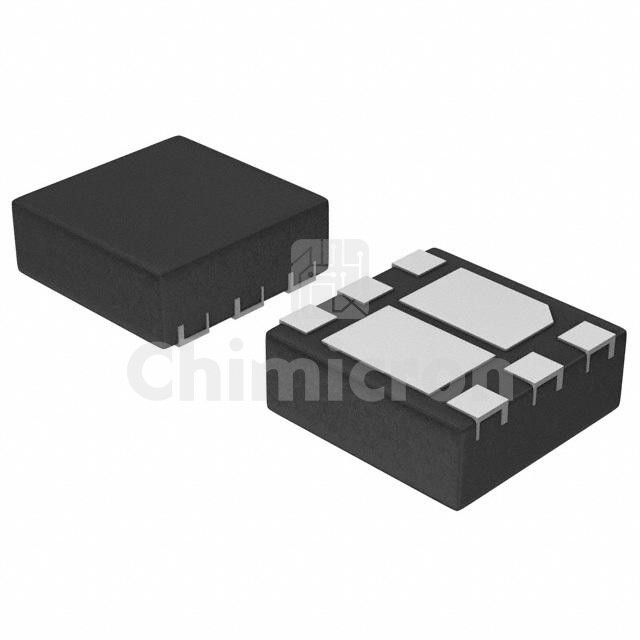

NTLJF4156NT1G
Manufacturer: Sanyo Semiconductor/ON Semiconductor
Description: MOSFET N-CH 30V 2.5A 6WDFN
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: -
In Stock:1200000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the NTLJF4156NT1G Sanyo Semiconductor/ON Semiconductor at chimicron.com. We have 1200000 pieces of NTLJF4156NT1G in stock available now. Submit an inquiry for NTLJF4156NT1G or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C2.5A (Tj)
Drive Voltage (Max Rds On, Min Rds On)1.5V, 4.5V
Rds On (Max) @ Id, Vgs70mOhm @ 2A, 4.5V
Vgs(th) (Max) @ Id1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs6.5 nC @ 4.5 V
Vgs (Max)±8V
Input Capacitance (Ciss) (Max) @ Vds427 pF @ 15 V
FET FeatureSchottky Diode (Isolated)
Power Dissipation (Max)710mW (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package6-WDFN (2x2)
Package / Case6-WDFN Exposed Pad
