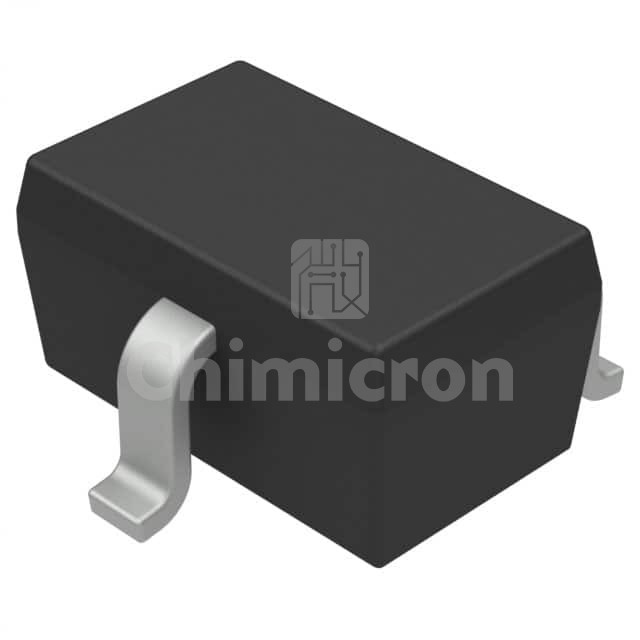

PMF170XP,115
Manufacturer: Nexperia
Description: MOSFET P-CH 20V 1A SOT323
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: -
In Stock:349290
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the PMF170XP,115 Nexperia at chimicron.com. We have 349290 pieces of PMF170XP,115 in stock available now. Submit an inquiry for PMF170XP,115 or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C1A (Ta)
Drive Voltage (Max Rds On, Min Rds On)4.5V
Rds On (Max) @ Id, Vgs200mOhm @ 1A, 4.5V
Vgs(th) (Max) @ Id1.15V @ 250µA
Gate Charge (Qg) (Max) @ Vgs3.9 nC @ 4.5 V
Vgs (Max)±12V
Input Capacitance (Ciss) (Max) @ Vds280 pF @ 10 V
FET Feature-
Power Dissipation (Max)290mW (Ta), 1.67W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageSOT-323
Package / CaseSC-70, SOT-323
