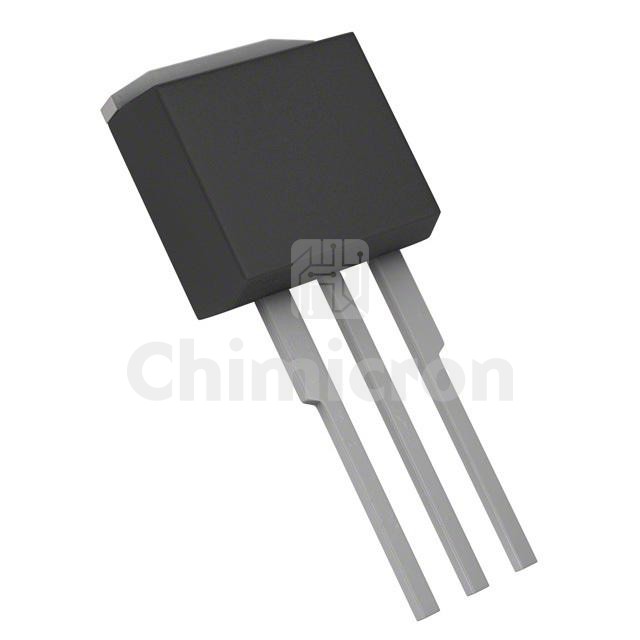

IRFZ46NLPBF
Manufacturer: IR (Infineon Technologies)
Description: MOSFET N-CH 55V 53A TO262
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: HEXFET®
In Stock:300000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the IRFZ46NLPBF IR (Infineon Technologies) at chimicron.com. We have 300000 pieces of IRFZ46NLPBF in stock available now. Submit an inquiry for IRFZ46NLPBF or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesHEXFET®
PackageTube
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)55 V
Current - Continuous Drain (Id) @ 25°C53A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs16.5mOhm @ 28A, 10V
Vgs(th) (Max) @ Id4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs72 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds1696 pF @ 25 V
FET Feature-
Power Dissipation (Max)3.8W (Ta), 107W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-262
Package / CaseTO-262-3 Long Leads, I²Pak, TO-262AA
